使用TypeScript开发Vue应用程序及接入swagger2接口定义

青菜萝卜丁

2019-03-08

仓库案例

springboot_swagger
vue-ts-swagger

工具准备

安装Visual Studio Code

从https://code.visualstudio.com/下载安装
安装好Vetur,vscode-pont及其他插件

安装npm支持

从https://nodejs.org/en/下载安装,
使用node -v检查是否成功

创建项目

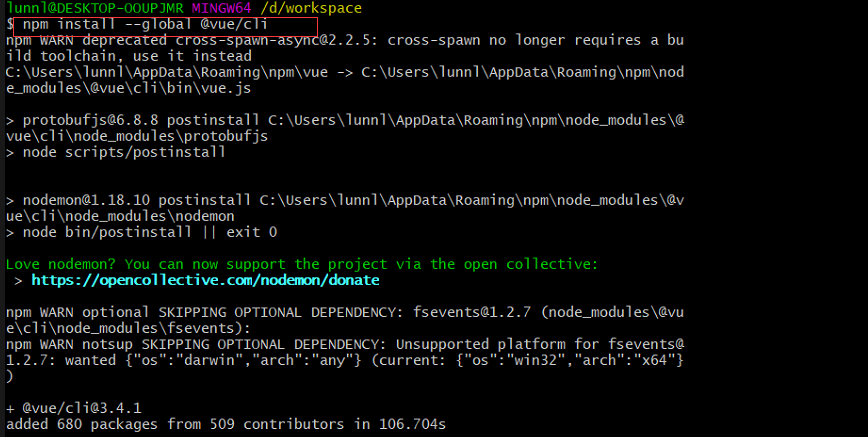

1 2	# 1. 如果没有安装 Vue CLI 就先安装 npm install --global @vue/cli

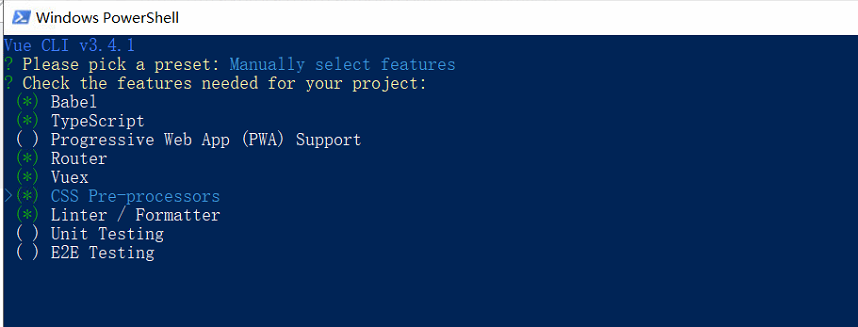

1 2	# 2. 创建一个新工程，并选择 "Manually select features (手动选择特性)" 选项 vue create vue-ts-swagger

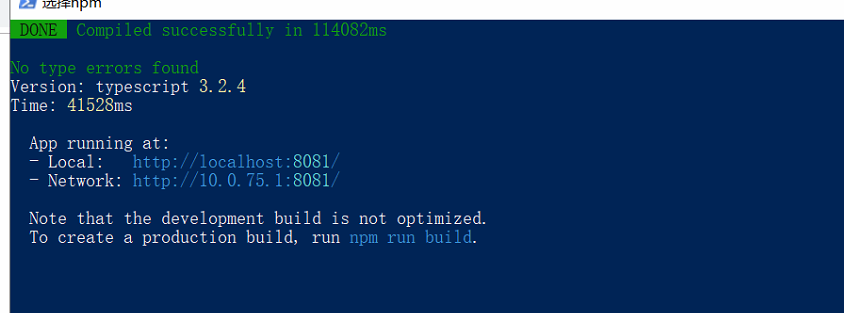

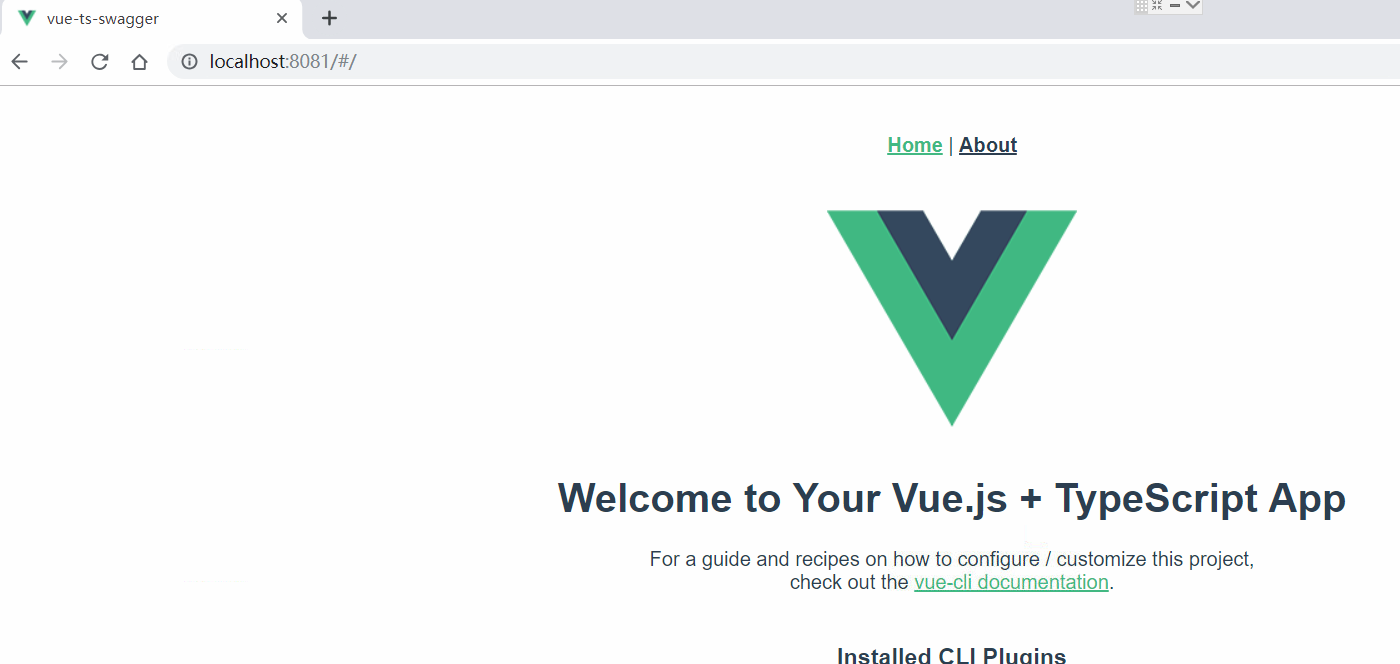

初次访问

1 2	cd vue-ts-swagger npm run serve

配置Pont

在项目根目录创建pont-config.json，示例内容:

{
  "originUrl": "http://localhost:8080/v2/api-docs",
  "outDir": "./src/services",
  "templatePath": "./pontTemplate"
}

originUrl: 接口平台提供数据源的url
outDir: 成代码的存放路径，使用相对路径即可
templatePath: 指定自定义代码生成器的路径
更多配置项参考https://github.com/nefe/pont

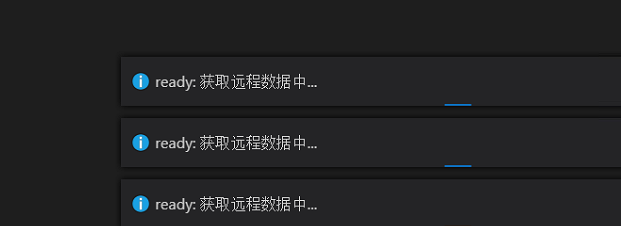

vscode-pont插件检测到项目中有合法的pont-config.json，插件马上启动

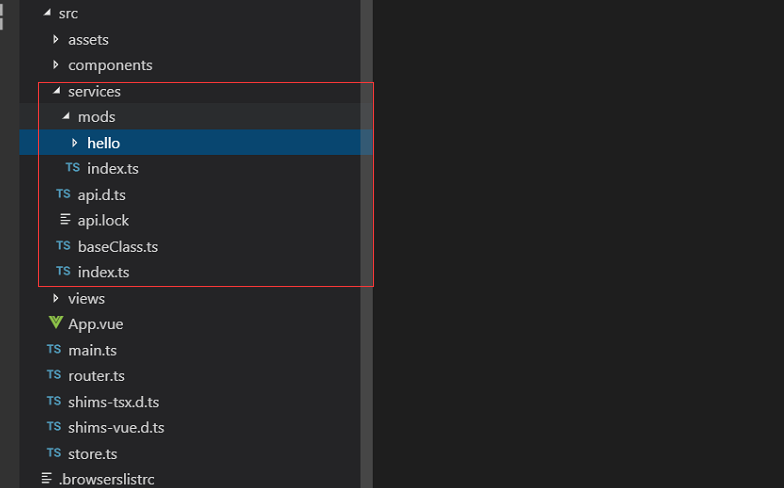

并将自动生成相关的接口文件

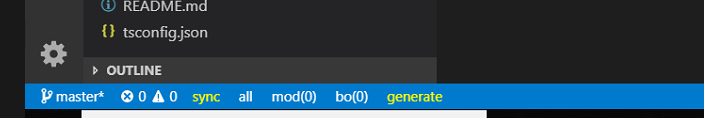

在编辑器左下角有相关的操作按钮

增加pontTemplate.ts

根据pont-config.json中设置，在项目根目录增加pontTemplate.ts，用于覆盖默认生成模板


import * as Pont from 'pont-engine';
import { CodeGenerator, Interface } from "pont-engine";

export class FileStructures extends Pont.FileStructures {
}

export default class MyGenerator extends CodeGenerator {
    /** 获取接口实现内容的代码 */
  getInterfaceContent(inter: Interface) {
    const bodyParmas = inter.getBodyParamsCode();
    const requestParams = bodyParmas ? `params, bodyParams` : `params`;

    return `
    /**
     * @desc ${inter.description}
     */
    import * as defs from '../../baseClass';
    import fetch from '@/utils/fetch';
    export ${inter.getParamsCode()}
    export const init = ${inter.response.initialValue};
    export async function request(${requestParams}: any) {
        return fetch({
          url: '${inter.path}',
          ${bodyParmas ? 'params: bodyParams' : 'params'},
          method: '${inter.method}',
        });
      }
   `;
  }

  /** 获取所有模块的 index 入口文件 */
  getModsIndex() {
    let conclusion = `
      declare var window;
      window.API = {
        ${this.dataSource.mods.map(mod => mod.name).join(', \n')}
      };
    `;

    // dataSource name means multiple dataSource
    if (this.dataSource.name) {
      conclusion = `
        export const ${this.dataSource.name} = {
          ${this.dataSource.mods.map(mod => mod.name).join(', \n')}
        }
      `;
    }

    return `
      ${this.dataSource.mods
        .map(mod => {
          return `import * as ${mod.name} from './${mod.name}';`;
        })
        .join('\n')}
      ${conclusion}
    `;
  }

   /** 获取接口类和基类的总的 index 入口文件代码 */
   getIndex() {
    let conclusion = `
      import * as defs from './baseClass';
      import './mods/';
      declare var window: { defs: any; };
      window.defs = defs;
    `;

    // dataSource name means multiple dataSource
    if (this.dataSource.name) {
      conclusion = `
        import { ${this.dataSource.name} as defs } from './baseClass';
        export { ${this.dataSource.name} } from './mods/';
        export { defs };
      `;
    }

    return conclusion;
  }
}

增加axios请求文件

在src/utils/下建立fetch.ts

import axios from 'axios'

// create an axios instance
const service = axios.create({
  baseURL: 'http://localhost:8080/', // api的base_url
  timeout: 1000 * 60 * 5 // request timeout
})

// request interceptor
service.interceptors.request.use(config => {
  // Do something before request is sent

  return config
}, error => {
  // Do something with request error
  console.log(error) // for debug
  Promise.reject(error)
})
// respone interceptor
service.interceptors.response.use(
  response => {
    console.log(response)
    return response
  },
  error => {
    if (error.response) {
      // Do something with request error
      console.log(error.response)
    }
    return Promise.reject(error)
  })

export default service

使用

可以在main.ts中加入

1	import '@/services/'

即可通过下面API.方式使用自动生成的接口
如hello接口

//...

mounted () {
  API.hello.hello.request({name:'karoy'})
}

//...

注意

baseClass中定义的生成依赖于definitions定义，如后端注解@ApiModel生成的定义，没有将会出现导入错误。

java注解示例

api接口通用返回对象

package com.karoy.springboot.common;


import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;

import java.io.Serializable;

@ApiModel(value = "ApiResult",description = "api接口通用返回对象")
public class ApiResult implements Serializable {
    /**
     * @description 返回码
     */
    @ApiModelProperty(value = "返回码",dataType = "int")
    private int code;

    /**
     * @description 错误信息
     */
    @ApiModelProperty(value = "错误信息",dataType = "String")
    private String message;

    /**
     * @description 响应数据
     */
    @ApiModelProperty(value = "响应数据",dataType = "Object")
    private Object data;

    public final int getCode() {
        return this.code;
    }

    public final void setCode(int code) {
        this.code = code;
    }

    public final String getMessage() {
        return this.message;
    }

    public final void setMessage( String message) {
        this.message = message;
    }

    public final Object getData() {
        return this.data;
    }

    public final void setData(Object data) {
        this.data = data;
    }

    public ApiResult(int code, String message, Object data) {
        super();
        this.code = code;
        this.message = message;
        this.data = data;
    }
}

HELLO接口

package com.karoy.springboot.action;

import com.karoy.springboot.common.ApiResult;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import io.swagger.annotations.ApiResponse;
import io.swagger.annotations.ApiResponses;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

@Api(description = "HELLO接口")
@RestController
public class HelloController {
    @ApiOperation(value = "欢迎" ,  notes="欢迎")
    @ApiResponses({
            @ApiResponse(code = 200, message = "OK", response = ApiResult.class),
            @ApiResponse(code = 204, message = "No Content", response = ApiResult.class),
            @ApiResponse(code = 401, message = "Unauthorized", response = ApiResult.class),
            @ApiResponse(code = 403, message = "Forbidden", response = ApiResult.class),
            @ApiResponse(code = 404, message = "Not Found", response = ApiResult.class)
    })
    @RequestMapping("/hello")
    public String hello(@RequestParam("name") String name) {
        return "Hello "+name;
    }
}

swagger2 json示例

{"swagger":"2.0","info":{"description":"Api Documentation","version":"1.0","title":"Api Documentation","termsOfService":"urn:tos","contact":{},"license":{"name":"Apache 2.0","url":"http://www.apache.org/licenses/LICENSE-2.0"}},"host":"localhost:8080","basePath":"/","tags":[{"name":"hello-controller","description":"HELLO接口"}],"paths":{"/hello":{"get":{"tags":["hello-controller"],"summary":"欢迎","description":"欢迎","operationId":"helloUsingGET","produces":["*/*"],"parameters":[{"name":"name","in":"query","description":"name","required":true,"type":"string"}],"responses":{"200":{"description":"OK","schema":{"$ref":"#/definitions/ApiResult"}},"204":{"description":"No Content","schema":{"$ref":"#/definitions/ApiResult"}},"401":{"description":"Unauthorized","schema":{"$ref":"#/definitions/ApiResult"}},"403":{"description":"Forbidden","schema":{"$ref":"#/definitions/ApiResult"}},"404":{"description":"Not Found","schema":{"$ref":"#/definitions/ApiResult"}}},"deprecated":false},"head":{"tags":["hello-controller"],"summary":"欢迎","description":"欢迎","operationId":"helloUsingHEAD","consumes":["application/json"],"produces":["*/*"],"parameters":[{"name":"name","in":"query","description":"name","required":true,"type":"string"}],"responses":{"200":{"description":"OK","schema":{"$ref":"#/definitions/ApiResult"}},"204":{"description":"No Content","schema":{"$ref":"#/definitions/ApiResult"}},"401":{"description":"Unauthorized","schema":{"$ref":"#/definitions/ApiResult"}},"403":{"description":"Forbidden","schema":{"$ref":"#/definitions/ApiResult"}},"404":{"description":"Not Found","schema":{"$ref":"#/definitions/ApiResult"}}},"deprecated":false},"post":{"tags":["hello-controller"],"summary":"欢迎","description":"欢迎","operationId":"helloUsingPOST","consumes":["application/json"],"produces":["*/*"],"parameters":[{"name":"name","in":"query","description":"name","required":true,"type":"string"}],"responses":{"200":{"description":"OK","schema":{"$ref":"#/definitions/ApiResult"}},"201":{"description":"Created"},"204":{"description":"No Content","schema":{"$ref":"#/definitions/ApiResult"}},"401":{"description":"Unauthorized","schema":{"$ref":"#/definitions/ApiResult"}},"403":{"description":"Forbidden","schema":{"$ref":"#/definitions/ApiResult"}},"404":{"description":"Not Found","schema":{"$ref":"#/definitions/ApiResult"}}},"deprecated":false},"put":{"tags":["hello-controller"],"summary":"欢迎","description":"欢迎","operationId":"helloUsingPUT","consumes":["application/json"],"produces":["*/*"],"parameters":[{"name":"name","in":"query","description":"name","required":true,"type":"string"}],"responses":{"200":{"description":"OK","schema":{"$ref":"#/definitions/ApiResult"}},"201":{"description":"Created"},"204":{"description":"No Content","schema":{"$ref":"#/definitions/ApiResult"}},"401":{"description":"Unauthorized","schema":{"$ref":"#/definitions/ApiResult"}},"403":{"description":"Forbidden","schema":{"$ref":"#/definitions/ApiResult"}},"404":{"description":"Not Found","schema":{"$ref":"#/definitions/ApiResult"}}},"deprecated":false},"delete":{"tags":["hello-controller"],"summary":"欢迎","description":"欢迎","operationId":"helloUsingDELETE","produces":["*/*"],"parameters":[{"name":"name","in":"query","description":"name","required":true,"type":"string"}],"responses":{"200":{"description":"OK","schema":{"$ref":"#/definitions/ApiResult"}},"204":{"description":"No Content","schema":{"$ref":"#/definitions/ApiResult"}},"401":{"description":"Unauthorized","schema":{"$ref":"#/definitions/ApiResult"}},"403":{"description":"Forbidden","schema":{"$ref":"#/definitions/ApiResult"}},"404":{"description":"Not Found","schema":{"$ref":"#/definitions/ApiResult"}}},"deprecated":false},"options":{"tags":["hello-controller"],"summary":"欢迎","description":"欢迎","operationId":"helloUsingOPTIONS","consumes":["application/json"],"produces":["*/*"],"parameters":[{"name":"name","in":"query","description":"name","required":true,"type":"string"}],"responses":{"200":{"description":"OK","schema":{"$ref":"#/definitions/ApiResult"}},"204":{"description":"No Content","schema":{"$ref":"#/definitions/ApiResult"}},"401":{"description":"Unauthorized","schema":{"$ref":"#/definitions/ApiResult"}},"403":{"description":"Forbidden","schema":{"$ref":"#/definitions/ApiResult"}},"404":{"description":"Not Found","schema":{"$ref":"#/definitions/ApiResult"}}},"deprecated":false},"patch":{"tags":["hello-controller"],"summary":"欢迎","description":"欢迎","operationId":"helloUsingPATCH","consumes":["application/json"],"produces":["*/*"],"parameters":[{"name":"name","in":"query","description":"name","required":true,"type":"string"}],"responses":{"200":{"description":"OK","schema":{"$ref":"#/definitions/ApiResult"}},"204":{"description":"No Content","schema":{"$ref":"#/definitions/ApiResult"}},"401":{"description":"Unauthorized","schema":{"$ref":"#/definitions/ApiResult"}},"403":{"description":"Forbidden","schema":{"$ref":"#/definitions/ApiResult"}},"404":{"description":"Not Found","schema":{"$ref":"#/definitions/ApiResult"}}},"deprecated":false}}},"definitions":{"ApiResult":{"type":"object","properties":{"code":{"type":"integer","format":"int32","description":"返回码"},"data":{"type":"object","description":"响应数据"},"message":{"type":"string","description":"错误信息"}},"title":"ApiResult","description":"api接口通用返回对象"}}}
